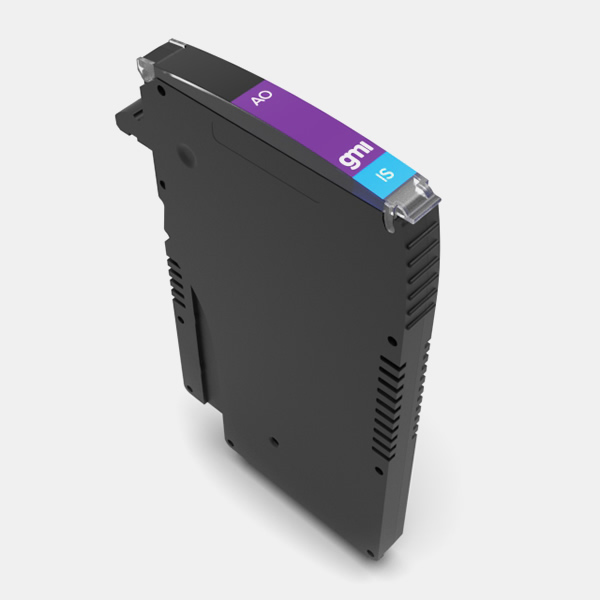

G.M. International X1-IS-AO-02-S I.S. SIL2 HART® Isolating Driver module. GMI Intrinsically Safe Isolators, Analog Output

The Isolating Driver X1-IS-AO-02 module is a high integrity analog output interface suitable for applications requiring SIL 2 level in safety related systems for high risk industries. It isolates and transfers a 4-20 mA signal from a controller located in Safe Area to a load in Hazardous Area. The circuit allows bi-directional communication signals, for HART® smart positioners. Line and load open/short circuit detection is provided: the fault in the field is directly mirrored to the PLC AO card as open circuit and it is also reported on the common fault line. To ease maintenance operations, field devices can be disconnected through a two-position insertion/extraction mechanism. This product requires a dedicated Termination Board.

FEATURES

• SIL 2 / SC 3

• Input from Zone 0 / Division 1

• Installation in Zone 2 / Division 2

• Loop disconnection to ease maintenance operations

• HART® compatible

• Line & Load short/open circuit programmable diagnostics

• Out-of-range fault with programmable thresholds

• Field fault mirroring to the DCS/PLC IO Card

• High Accuracy

• Three port isolation, Input/Output/Supply

STATUS

ACTIVE

CHANNELS

1
