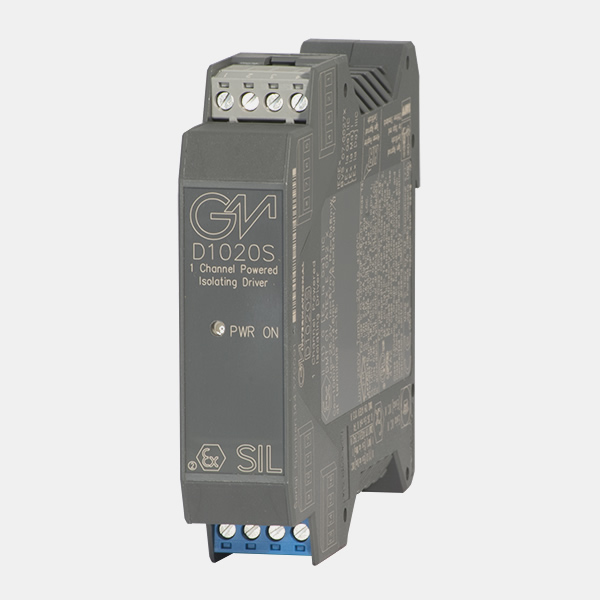

G.M. International D1020S SIL 2 Powered Isolating Driver Smart-HART® compatible DIN-Rail. GMI Intrinsically Safe Isolators

The single channel DIN Rail Isolating Driver D1020S isolates and transfers a 4-20, 0-20 mA signal from a controller located in Safe Area to a load of up to 750 Ω in Hazardous Area. It has a high output capacity of 15 V at 20 mA combined with a low drop across its input terminals. The circuit allows bi-directional communication signals, for Smart I/P. In the 4-20 mA input range, a field open circuit reflects a high impedance to the control device output circuit.

FEATURES

• SIL2 /SC3

• Output to Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.

• 4-20 or 0-20 mA Input, Output Signal.

• Wide Band Smart Communication, HART® compatible.

• Field open circuit detection.

• High Accuracy.

• Three port isolation, Input/Output/Supply.

• EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1

• 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.

STATUS

PHASE-OUT

Next: SPARE-ONLY (2027-01-01)

ALTERNATIVE PRODUCT

D5020S

CHANNELS

2
