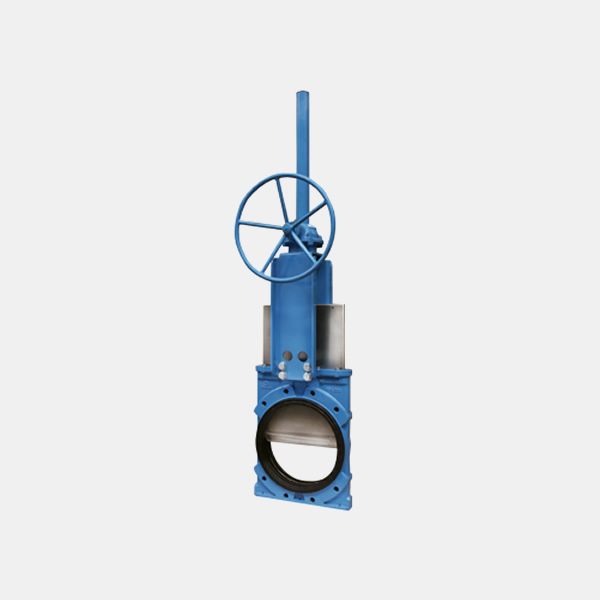

Orbinox SERIES 61 (VG) model knife gate valve is a wafer type valve equipped with two metal reinforced rubber sleeves,designed for applications with abrasive slurries. The SER.61 (VG) slurry knife gate valve is mainly used in industries suchas Mining, Chemical Plants, Power Plants, Wastewater Treatment Plants, etc.

Orbinox VG (SER.61) Knife Gate Valve - Product description:

• Bi-directional wafer type knife gate valve.

• Size range of DN 2"-36" (larger sizes upon request).

• Standard flange connection: EN 1092 PN10 and ASME B16.5 (class 150). Others available upon request.

• Manual (handwheel and bevel gear), pneumatic (single and double-acting), electric and hydraulic actuation options available.

• The design ensures tight shut-off in both flow directions, while minimizing wear and maintenance demands.

Key Features:

• Wafer type cast monoblock body with two machined lateral openings where the sleeves fit perfectly. Grease nipples to lubricate the gate are standard.

• Open at the bottom for draining purposes, also available with covers or splash guards.

• Rectangular shaped stainless steel gate, polished both sides to reduce friction and to avoid seat damage.

• Metal reinforced rubber sleeve seats, designed to allow maximum flexibility and minimum effort during gate travel.

• EPDM packing as standard. Conventional leak proof packing also available.

• RAL-5015 blue epoxy-coating on all cast iron/carbon steelncomponents.

• Automated valves provided with gate guards in accordance with EU Safety Standards.

• Other options: open-closed lockout system, flush ports, special materials, fabricated valves, gate coatings, etc.

• Actuation accessories: limit & proximity switches, mechanical stops, positioners, solenoid valves, manual overrides, fail safe systems, stem extensions and floor stands.

• Easy maintenance with replaceable components. Wide range of materials and sizes to suit diverse applications.

Brand Advantages – Orbinox

Orbinox is a globally recognized leader in knife gate valve technology, known for engineering excellence, durability, and innovation. With decades of experience and a commitment to quality, Orbinox products are trusted by industries worldwide for safe, efficient, and long-lasting valve solutions.

Why Choose HKXYTECH

Partnering with HKXYTECH means more than just access to world-class valve solutions. We provide:

• Fast delivery with optimized supply chains

• Competitive pricing for greater cost efficiency

• Expert technical support to solve complex application challenges

• Comprehensive after-sales service for long-term reliability

HKXYTECH combines premium brands like Orbinox with responsive local service, ensuring maximum uptime, safety, and value for our customers.
