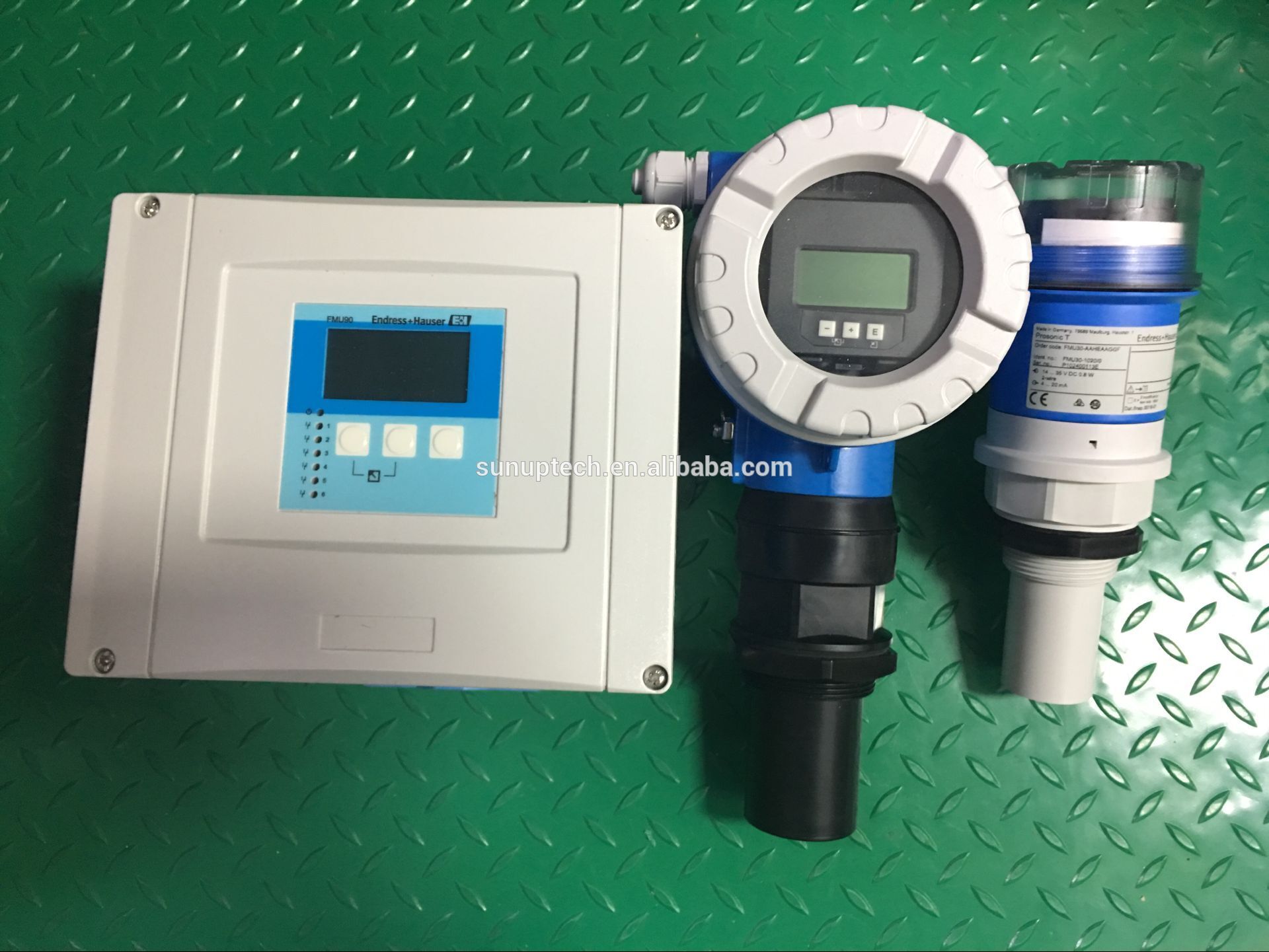

FMU90-R11CA111AA3A Ultrasonic measurement Prosonic are in stock

FMU90-R11CA111AA3A

010 Approval: R Non-hazardous area
020 Application: 1 Level + pump control, alternating
030 Housing, Material: 1 Field mounting PC, IP66 NEMA4x
040 Operation: C Illuminated display + keypad
050 Power Supply: A 90-253VAC
060 Level Input: 1 1x sensor FDU9x/8x
070 Switch Output: 1 1x relay, SPDT
080 Output: 1 1x 0/4-20mA HART
090 Additional Input: A W/o
100 Datalog Function: A Basic version
110 Language: 3 EN, ZH, JA, KO, TH, ID
120 Additional Option: A Basic version

Introduction

Prosonic FMU90 separated version with field housing or top hat rail housing for control cabinet instrumentation are suited for continuous, non-contact level measurement of fluids, pastes, sludge and powdery to coarse bulk solids. Also the flow measurement in open channels and weirs is possible as the simultaneous measurement of level and flow in a storm water overflow basin with only 1 sensor. Up to 6 relays for tendency alarm, flow pulse output or backwater/sludge alarm, 1 or 2 channel version.

Features

• Simple, menu-guided operation with 6-line plain text display, 15 languages selectable

• Envelope curves on the display for quick and simple diagnosis

• Easy operation, diagnosis and measuring point documentation with the supplied "FieldCare" operating program

• Time-of-Flight correction via integrated or external temperature sensors

• Linearisation (up to 32 points, freely configurable) for the most common flumes and weirs
  pre-programmed and selectable

• Online calculation of the flume-/weir-flows via integrated flow curves

• Automatic detection of the sensors FDU9x

Application:

Level measurement of fluids and bulk materials with 1 or 2 sensors for measuring of up to 45m (148ft) and level limit detection. Pump control, rake control and as option: additional pump control function.

• Calculations: Average, difference, sum

• Application flow: Flow measurement in open channels and weirs with 1 or 2 sensors

• Flow measurement with back water or sludge detection

• Up to 3 totalizers and 3 counters

• Counting or time pulse output for control of external units
