product   or component type

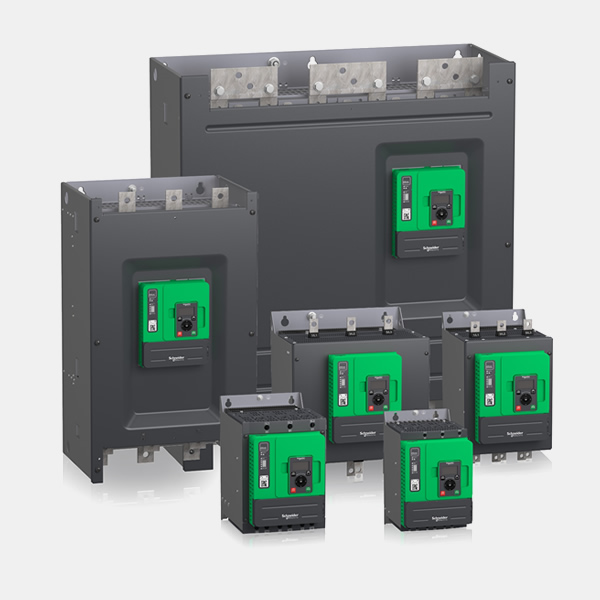

Soft starter

product   destination

Asynchronous motors

product   specific application

Heavy duty industry and pumps

device   short name

ATS48

power   supply voltage

208...690 V (- 15...10 %)

motor   power kW

110 kW at 400 V for standard applications

110 kW at 440 V for standard applications

110 kW at 500 V for severe applications

110 kW at 525 V for severe applications

132 kW at 500 V for standard applications

132 kW at 525 V for standard applications

132 kW at 660 V for severe applications

160 kW at 660 V for standard applications

160 kW at 690 V for severe applications

200 kW at 690 V for standard applications

45 kW at 230 V for severe applications

55 kW at 230 V for standard applications

90 kW at 400 V for severe applications

90 kW at 440 V for severe applications

motor   power hp

125 hp at 460 V for severe applications

150 hp at 460 V for standard applications

150 hp at 575 V for severe applications

200 hp at 575 V for standard applications

50 hp at 208 V for severe applications

60 hp at 208 V for standard applications

60 hp at 230 V for severe applications

75 hp at 230 V for standard applications

power   dissipation in W

For standard applications 468 W

For standard applications 580 W

utilisation   category

AC-53A

type   of start

Start with torque control (current   limited to 5 In)

Icl   nominal current

210 A (connection in the motor supply   line) for severe applications

210 A (connection in the motor supply   line) for standard applications

IP   degree of protection

IP00
