MTL Intrinsically Safe Zener Barriers MTL7700-hkxytech
  • MTL Intrinsically Safe Zener Barriers MTL7700

MTL Intrinsically Safe Zener Barriers MTL7700

2015-06-26 12:32:12

Description:

The MTL7700 Series follows closely in the footsteps of the MTL700 but as a DIN rail mounting barrier providing quick and easy installation without the need for special hardware. Removable terminals are used for ease of installation, maintenance and for providing a loop disconnect by simply unplugging the terminals from the side of the module. Wire entry is also angled to assist wiring within limited space ……

Notice:

New Products

Siemens 6DR5220-0EG00-0AA0 SIPART PS2 smart electropneumatic positioner for pneumatic linear and actuators

SIPART PS2 smart electropneumatic positioner for pneumatic linear and part-turn actuators; 2-,3-,4-wire; 4...20mA with HART-interface; double action; polycarbonate enclosure with fixable slipping clutch with explosion protection (ATEX/IECEx/FM/CSA); Intrinsic safety Connection thread el.: M20x1.5 / pneu.: G 1/4 without limit monitor without option module . Brief instructions German / English / Chinese . without mounted pressure gauge block

Allen-Bradley 2711P-T12C4D8 PanelView Plus 6 Graphic Terminals Operator Interfaces Rockwell Automation

Provides significant improvements over the PanelView Plus 400 graphic terminals

Siemens 7MF4033-1BA10-2AB6 SITRANS transmitter

SITRANS P DS III / P410, HART,4-20 mA transmitter for pressure Measuring cell filling silicone oil, normal cleaning Span: 0,01 ... 1 bar g (0.15 ... 14.5 psi g), overload limit 6 bar Diaphragm stainless steel, measuring cell stainless steel Female thread 1/2-14 NPT Die-cast aluminium housing International design english inscription and documentation as cd None explosion protection Electric connection and cable inlet: cable gland M20 x 1.5 Housing cover with window

Assortments

Description

MTL7700 Series

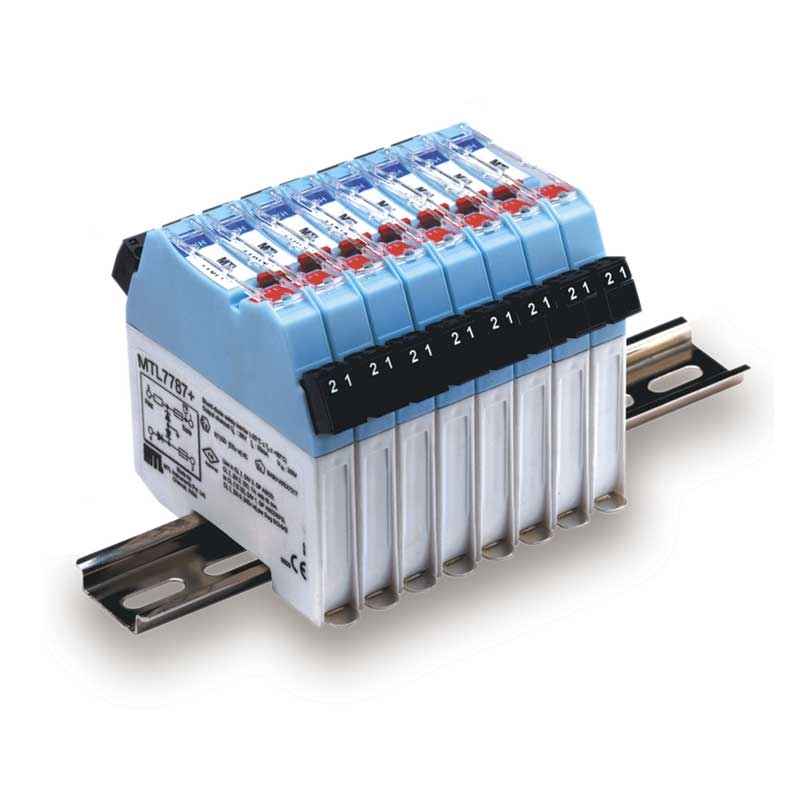

product image

The MTL7700 Series follows closely in the footsteps of the MTL700 but as a DIN rail mounting barrier providing quick and easy installation without the need for special hardware. Removable terminals are used for ease of installation, maintenance and for providing a loop disconnect by simply unplugging the terminals from the side of the module. Wire entry is also angled to assist wiring within limited space enclosures. MTL7700 barriers clamp simply and securely onto standard T-section DIN rail, simultaneously making a reliable IS earth connection. For applications where field power is required for switch inputs or 2-wire transmitters, the MTL7700 Series provides a bussed power feed facility. When used in conjunction with the MTL7798 power feed module the user has a fully protected, electronically fused supply to many barriers with no additional wiring required.

  • Removable terminals - for easy cabling - UNIQUE

  • Bussed power - reduces cabling - UNIQUE

  • Barrier protection module

  • Proximity detector inputs - UNIQUE

  • Dual channel modules

  • Relay and solid state switch modules - UNIQUE


For product certificates <click here>

Product CodeDescriptionDownloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications


MTL7700 Series AccessoriesDatasheet
INA7700 MTL7700 Series Safety Instructions (ATEX)Manual
INM7700 MTL7700 Series Instruction ManualManual
MTL7700 MTL7700 Series ApplicationsDatasheet  Manual
MTL7700 MTL7700 Series Cable ParametersDatasheet
MTL7700 MTL7700 Series Active Barrier descriptions<a href="http://www.mtl-inst.com/images/uploads/datasheets/7700/MTL7700_active_barriers.pdf" "="" target="_blank" style="color: rgb(0, 84, 171); font-size: 1.1rem; text-decoration: none;">Datasheet
MTL7700  MTL7700 SeriesDatasheet
