Rockwell CompactLogix Control Systems

2015-06-26 12:13:03

Description:

Our CompactLogix™ and Compact GuardLogix® controllers use a common control engine with a common development environment to provide mid-range application control in an easy-to-use environment. Tight integration between the programming software, controller and I/O modules reduces development time and cost at commissioning and during normal operation. This commonality provides cost-effective integration of a machine or safety application into a plant-wide control system because it integrates safety, motion, discrete and drive capabilities in a single controller.……

Notice:

New Products

Original Rosemount Emerson AMS Trex Device Communicator TREXLFPKLWP3

Improve reliability with the AMS Trex Device Communicator. Increase productivity in the field with your Trex unit by doing more types of tasks. Easily solve complex device issues without the need for other specialized tools. The Trex communicator is designed to withstand the harsh conditions in and around manufacturing facilities and is safely-rated, so it can go anywhere you can go. Rely on Trex to deliver results and keep your field assets reliable.

475FP1EKLUGMTS - Emerson Rosemount 475 Field Communicator

475FP1EKLUGMTS - Emerson Rosemount 475 Field Communicator,the bestseller. Contact caroline@whxyauto.com to get quotation. Model 475FP1EKLUGMT.Protocol:HART and FF.Certifications:ATEX, FM, CSA, and IECEx intrinsically safe.

Honeywell STA700 SmartLine Absolute Pressure STA72L-F1G000-1-0-AHB-11S-A-10A0

Introduction Part of the SmartLine® family of products, the STA700 and STA70L are suitable for monitoring, control and data acquisition. STA70X products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures.

Honeywell STA700 SmartLine Absolute Pressure ​STA722/STA725/STA72L/STA72S

Introduction Part of the SmartLine® family of products, the STA700 and STA70L are suitable for monitoring, control and data acquisition. STA70X products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures.

Assortments

Description

Features

  • High functionality in an economical platform

  • DIN rail or panel mount for flexible installation

  • Packaged controllers offer embedded I/O to lower costs and simplify configuration

  • Analog, digital and specialty modules cover a wide range of applications

  • Advanced system connectivity to EtherNet/IP™ networks for CompactLogix™ 5370 platforms

  • Full support for standard EtherNet/IP networks and limited support for ControlNet™ and DeviceNet™ networks across all CompactLogix platforms

  • Integrated safety and motion capabilities in a single controller

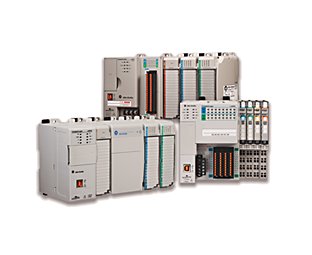

1768 CompactLogix Controllers

Bulletin 1768 CompactLogix™ and Compact GuardLogix® controllers are ideal for small to mid-size applications that require safety, motion, and/or complex communications. These controllers offer integrated serial, EtherNet/IP™ or ControlNet™ channels, and modular DeviceNet™ communications. They support as many as 30 I/O modules and as many as 16 motion axes.

1768 CompactLogix Controllers

Compact I/O Modules

Bulletin 1769 Compact I/O™ Chassis-Based Modules can be used as local and distributed I/O for a CompactLogix™, Compact GuardLogix®, or MicroLogix™ 1500 controller. Rack-type features in a rackless design lower costs and reduce replacement parts inventory. A built-in removable terminal block provides connections to I/O sensors and actuators.

Compact I/O Modules

1769 CompactLogix Controllers

Bulletin 1769 CompactLogix™ controllers are ideal for small to mid-size control applications that don’t require motion or safety functionality. These controllers offer integrated serial, EtherNet/IP™, or ControlNet™ channels; and modular DeviceNet™ communications.

1769 CompactLogix Controllers

5370 CompactLogix Controllers

Bulletin 1769 CompactLogix™ 5370 Controllers are ideal for small to mid-size machines and provide the benefits of Integrated Architecture™ for lower-cost machines. When combined with Kinetix® 350 servo drives, these controllers provide a strong motion solution for customers who require high performance in a compact and affordable package. These controllers expand on the scalability of the Logix family and share common features across all three platforms, including support for Integrated Motion on EtherNet/IP™ and Device Level Ring (DLR) for enhanced network resiliency.

5370 CompactLogix Controllers

Communications

Bulletin 1768 and 1769 CompactLogix™ and Compact GuardLogix® communication modules help you configure your system to exchange information between operating systems and a range of devices and platforms. You can select a CompactLogix or Compact GuardLogix controller with built-in communication ports, or select a coordinating communications module for the networks that meet your needs.

Communications

Motion

Bulletin 1769 CompactLogix™ 5370 controllers support Integrated Motion on EtherNet/IP™. The CompactLogix 1768-L4x controllers and the Compact GuardLogix® 1768-L4xS controllers support integrated motion through the 1768 SERCOS™ interface modules.

Motion

Power Supplies

Bulletin 1768 CompactLogix™ Power Supplies and Bulletin 1769 Compact I/O™ Expansion Power Supplies help keep your system running smoothly. Select power supplies based on the controller and the number of additional I/O banks you're using. Packaged controllers (1769-L23x, 1769-L16, 1769-L18, 1769-L24, 1769-L27) do not require power supplies because each controller package includes an integrated power supply.


Documentation

TitleNumberDownload
CompactLogix 5370 L1 Programmable Automation Controllers1769-PP012DEENESFRITJAKOPTZCZH
CompactLogix 5370 L2 Programmable Automation Controllers Product Profile1769-PP011DEENESFRITJAKOPTZCZH
Midrange Architecture System Selection GuideIA-SG001DEENESFRITJAKONLPLPTTRZC
CompactLogix Selection Guide1769-SG001CSDEENESFRITJAKONLPLPTTRZC
Logix5000 Controllers Common Procedures Programming Manual1756-PM001ENJA
Logix5000 Controllers Design Considerations Reference Manual1756-RM094EN
GuardLogix Controller Systems Safety Reference Manual1756-RM093EN
More CompactLogix System publications in Literature LibraryAll Languages
