E+H Endress + Hauser Electronic differential pressure Deltabar FMD72-hkxytech
  • E+H Endress + Hauser Electronic differential pressure Deltabar FMD72

E+H Endress + Hauser Electronic differential pressure Deltabar FMD72

2016-06-22 01:07:18

Description:

Electronic differential pressure system utilizing two metal sensor modules and one transmitter……

Notice:

New Products

Emerson Rosemount 3051T-G/A-1/2/3/4/5-A/F/W/X/M-2B/2C/2F/61-2/3/7-1/2 In-Line Pressure Transmitter

Confidently measure pressure and level with the Rosemount 3051T In-Line Pressure Transmitter. Engineered for 10-year installed stability and 0.04% of span accuracy, this industry-leading pressure transmitter provides you with the information necessary to run, control and monitor processes. The Rosemount 3051 includes features that meet your pressure measurement needs, such as a wide rangedown and Power Advisory diagnostics and is suitable for safety installations.

Siemens LOGO! basic modules with display 6ED1052-1CC08-0BA0

LOGO! 24CE, logic module, Display PS/I/O: 24 V/24 V/24 V trans., 8 DI (4AI)/4DO, memory 400 blocks, modular expandable, Ethernet integr. web server, data log, user-defined Web pages, standard microSD card for LOGO! Soft Comfort V8 or higher, older projects executable

SMC Directional Control Valves Pilot Operated 5 Port Solenoid Valve Plug-in Type SY3000/5000/7000 SY7420-5L0ZD-02

Due to the flow increase, the valve size can be reduced! Saves energy and space Power consumption: 0.1 W (With power saving circuit)/0.35 W (Standard)

Eaton MTL4521/L-MTL5521 MTL Intrinsically Safety Intrinsically Safe Isolators MTL 5500 range solenoid driver

The MTLx521 and the MTL4521L are loop-powered modules which enable a device located in the hazardous area to be controlled from the safe area. They can all drive a certified intrinsically safe low-power load, as well as non-energy-storing simple apparatus such as an LED.

Assortments

Description



Quick Details

  • Place of Origin: Germany, Germany

  • Brand Name: E+H

  • Model Number: FMD72

  • Nominal diameter: DN 8 to 250

  • Range: 0 to 2 200 000 kg/h

  • Max. measured: ±0,05 %

  • Hazardous area approvals:: ATEX, IECEx, FM, CSA, NEPSI, TIIS

  • Max. process pressure:: PN 100, Class 600, 63K

  • Medium temperature:: -50...+200 deg C

  • protection:: IP67/IP68

  • Outputs:: 4...20 mA Pulse / frequency/status

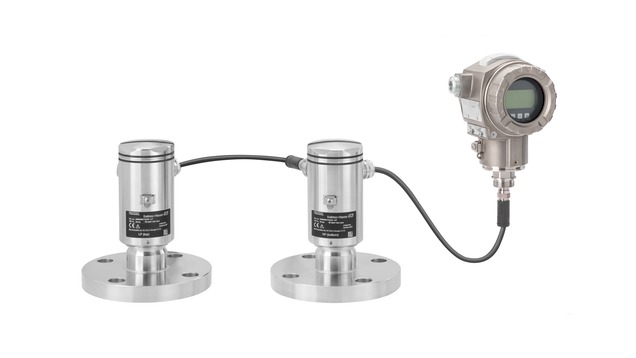

Electronic differential pressure Deltabar FMD72

Electronic differential pressure system utilizing two metal sensor modules and one transmitter





E+H   Electronic differential pressure Deltabar FMD72



Electronic differential pressure system utilizing two metal sensor modules and one transmitter



The electronic dp Deltabar FMD72 is a differential pressure system, used to measure the pressure, level, volume or mass of liquids in pressurized tanks or distillation columns/evaporators. The high pressure sensor (HP) measures the hydrostatic pressure. The low pressure sensor (LP) measures the head pressure. The level is calculated in the transmitter using these two digital values. The electronic dp system eliminates issues of traditional differential pressure measurements.
